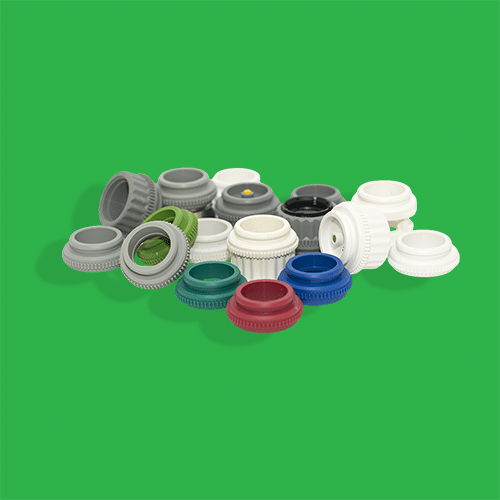

VA Actuator Adaptor Ring (s) – Möhlenhoff

The information for following adaptor rings for actuators is directly from Moehlenhoff.

VA02  – M30 x 1.5mm male thread (Grey), commonly used for:

• Uponor/Velta composite manifolds
• Uponor Velta 1005605
• Uponor 1000138 | L&K
• Uponor proVario | Vario Plus
• Uponor EP | A2671300

VA16 – M28 x 1.5mm (Red), commonly used for:

• HERZ valves | Calis-TS-RD | Rod distributor (1 8531 03) | TS-90-7723 | TS-90-7724 | TS-90-7728 | TS-90-7759 | TS-98-7623 V | TS-98-7624 V | TS-98-7624 VD, TS-V (Actuator required from 5mm stroke) | Zone valve 7723.
• WTH Valves
• KAN Therm Brass Distributor
• Thermoval
• Buderus

VA16H – M28 x 1.5mm (Grey with red pin), commonly used for:

• HERZ Valves | Thermostatic Valve 7760 | TS-99 -FV.
• Polytherm Manifold 1.

VA26 – Clip On (Grey), commonly used for:

• Giacomini valves | R553D/2.
• Giacomini/Warmafloor Manifolds.

VA30H – M30 x 1.5mm valves (White with blue pin), commonly used for:

• Danfoss VZL 2 DN 15 | VZL 2 DN 20 | VZL 4 DN 15 | VZL 4 DN 20.
• FAR thermo-electric valves (until 2007).
• Frese EVA [High] (Actuator required from 5mm stroke).

VA32 – M28 x 1.5mm valves (Green), commonly used for:

• Uponor WGF | Vario B Manifolds.
• Nereus 9440.
• Tour & Andersson Brass Manifolds | TRV 400.

VA50 – M30 x 1.5mm valves (Dark Grey), commonly used for:

• Wavin valves.
• Bell & Gossett Zone valve.
• Broen Ballorex Dynamic.
• Cazzaniga.
• Comap K9000P (Actuator required from 5mm stroke.
• Cufix.
• Emcal Stainless steel distributor (from March 2023).
• Esbe VTA372 (Actuator required from 5mm stroke)
• FAR 3086 (Actuator required from 5mm stroke) | 3086 1 | 3087 (Actuator required from 5mm stroke) | 3089 (Actuator required from 5mm stroke) | 3913.
• Frese EVA Basic (until 2016).
• Honeywell V 2060 DUB15 | V5822A4000 (Motorized actuator required) | V5832A4008 (Motorized actuator required) | VM2000 EUB20.
• Itap 917.
• IVAR VFC 01 VALV.FANC.2V1/2 KV 0.63 | VFC 03 V.FANC. 4V 1/2 KV 1.00.
• Johnson Controls VG 6210 EC | VG 6210 JC | VG 6510 EC.
• KaMo Brass distributor (from September 2005).
• KIDS KBP25 DN 15 (Actuator required from 5mm stroke) | KBP25 DN 20 (Actuator required from 5mm stroke).
• KBP25 DN 25 (Actuator required from 5mm stroke).
• Meibes Ballorex Dynamic DN 15S | Ballorex Dynamic DN 20S (Actuator required from 5mm stroke) | Ballorex Dynamic DN 32H (Motorized actuator required.).
• MNG (before 1998 | THV-BB | THV-KV | THV-UBG.
• Pantherm Floorstar Manitop Manitop Termoplastico.
• PresBlock Monoesa (Actuator required from 5mm stroke) | UFH-MDK (Actuator required from 5mm stroke).
• RBM 608.06.60 (Actuator required from 5mm stroke) | 1411.06.10 (Actuator required from 5mm stroke) | Series 1410.A (Actuator required from 5mm stroke).
• Reich UniQuick MS.
• Sauter BUT 010 F200 (Actuator required from 5mm stroke) | BUT 010 F400 | BUT 010 F420 (Actuator required from 5mm stroke) | BUT 015 F210 (Actuator required from 5mm stroke) | BUT 015 F410 VDL 010 F200 (Actuator required from 6.5mm stroke) | VXL 010 F220.
• Savar Brass 2003 0100 | 7004 0100.
• Saverbrass Series 6100 0100 | Series 6350 0100.
• SBK Siegfried Böhnisch PMV-B (until 1998).
• Seppelfricke 2-FA Manifold-S.
• Siemens VDN 110 | VDN115 | VDN 120 | VDN 215 | VEN 110 | VEN 120 | VUN 210 | VUN 215.
• Simplex Siro.
• Spartan V240 (Actuator required from 5mm stroke).
• Tobler Stramax 220TT2-07-08S (Actuator required from 5mm stroke).
• Tyne Flow LTD TFVP 22501-020 (Actuator required from 5mm stroke).
• Unicor
• Watts 131 U (DN 20.) | 131 UM | 2131 | 3131 (DN 15.) | 4131 (DN 20).
• Wittigsthal FT6-E | FVTZ-3-H-E (from 2018).


VA50H – M30 x 1.5mm valves (Grey with grey pin), commonly used for:

• Comap Biofloor
• Schlösser 9038 angle valve (High valve adapter required).

VA80 – M30 x 1.5mm valves (Light Grey/White), commonly used for:

• Komfort MK3-A
• Myson
• Moehlenhoff
• Uponor
• AO-Therm Stainless steel distributor.
• Aquatechnik Italien Multirapid (from 2009) (Actuator required from 5mm stroke).
• Athe-Therm Stainless steel distributor.
• Belparts NV2D15.
• Bianchi 662 | 663 | 664.
  Brugman
  Caleffi 402 DG (Adaptation only possible with an additional threaded ring from Caleffi. Actuator required from 5mm stroke). | Series 338 (Adaptation only possible with an additional threaded ring from Caleffi. Actuator requiredfrom 5mm stroke). | Series 402 DG (Adaptation only possible with an additional threaded ring from Caleffi. Actuator required from 5mm stroke). | Series 663 (Actuator required from 5mm stroke). | Series 670 (Actuator required from 5mm stroke).
• Carlo Poletti V 1521.
• Cazzaniga LUX angle valve.
• Comap D804 | D3809 (around 2015) | V9700 (Actuator required from 5mm stroke).
• Cosmo Object line | Stainless steel distributor | Stainless steel distributor (GCVES 3) | Stainless steel distributor AFC-V.
• Cuprotherm
• Delphis-Therm
• Emmeti Topway (Actuator required from 5mm stroke).
• Empur Manifold-D.
• EQtherm Dynamic | EQ plastic distributor (from December 2017) | Stainless steel manifold.
• Frank 2113 (from 2003) (Actuator required from 5mm stroke).
• Giacomini R553FP (Actuator required from 5mm stroke).
• Gomacal
• Heimeier A- exact AT 15 | DT 15 | DT 20 | Duolux one-pipe system | Dynatec Eclipse (from 2017) | Emotec-valve Standard C | Three-way mixing valve | V- exact | V- exact 2.
• HERB Stainless steel distributor.
• Herotec DFA VA Manifold.
• Herz 2 way H valve (1 7760 05) (Actuator required from 5mm stroke) | 3 way valve (1 7762 51) | TS-98-7624 VH | TS-98-7628 VH | TS-98-7659 VH | TS-98-VH (1 7623 26).
• Honeywell V 100 D | V 100 E | V 100 MD | V 100 ME (Actuator required from 5mm stroke) | V 107 M (Actuator required from 5mm stroke) | V 2000 EBB | V2020 | V5822A1063 (Motorized actuator required) | V5823A1009 V5823A2003 (Motorized actuator required) | V5823C2009 (Motorized actuator required) | V5832A1053 (Motorized actuator required) | V5832A1079 (Actuator required from 6.5mm stroke) | V5832A4003 (Actuator required from 6.5mm stroke) |  V5832A4016 (Actuator required from 6.5mm stroke) | V5833A3017 (Actuator required from 6.5mm stroke) | V5833A4007 | V9050 | VSMC-315-0.25 | VSMF-215-1.6 (Actuator required from 6.5mm stroke) | VSMF-215-2.5 (Actuator required from 6.5mm stroke) | VSMF-220-4.0 | VSMF-315 | VSMF-415-0.25 (Actuator required from 6.5mm stroke) | VSOF-215-2.5.
• ICMA 777 (old version) (Actuator required from 5mm stroke).
• Inteca Manifold-25ER1T-02.
• Itap 905 | 907 | 917 / 922.
• IVAR FBVP-02 | VFC 02 VALV.FANC.2W 3/4 KV 4,5.
• IVR 802 | 803
• Jaga Thermostatic valve KV-Large.
  Johnson Controls V 5210 KC (First Open function can only be used to a limited extent. Actuator required from 6.5mm stroke) | V 5510 CC (Actuator required from 5mm stroke) | V 5510 KC V 5810 DC (Actuator required from 5mm stroke).
• Jupiter
• Kemper Stainless steel distributor.
• Kermi
  Landis+Gyr VD 115 VD 215.
  Mair Heiztechnik (from 1998).
  Meibes Ballorex Dynamic | Flow Ballorex Dynamic | Low Flow.
  MNG (from 1998) | V2000BB DN 15 (Actuator required from 6.5mm stroke).
• Nereus Angled valve DN 10.
• Ondatherm Eurokal (BYC00200160) | Eurokal | (EUK00200160) | Floormatic.
• Oventrop Cocon Q | Multiblock (from 1997) | Valve insert V3K-S/V3K-F.
• Pexep Manifold 2-circuits.
• PresBlock RTEV-M.
• Purmo Premium Line Manifold (Actuator required from 5mm stroke).
• ratiodämm Stainless steel – 02 AC.
• RBM 14110610 (Actuator required from 5mm stroke) | Angle valve (Actuator required from 5mm stroke).
• RDZ Brass distributor (Actuator required from 5mm stroke).
• Remo
  Roth HK2.
  Roversy Brass distributor.
• Sauter BUL 020 F300 | BUT 010 F410 | BUT 015 F400 | BUT 020 F200 (Actuator required from 5mm stroke) | BUT 020 F400 (Actuator required from 5mm stroke) | BXL 010 F200 | BXL 010 F210 | VDL 010 F210 | VDL 020 | F210 VTE angle valve VUL 010 F330 (Actuator required from 5mm stroke) | VUL 010 F340 (Actuator required from 5mm stroke) | VUL 015 F310 (Actuator required from 5mm stroke) | VUT 015 F200 | VUT 020 F200 (Actuator required from 5mm stroke).
• SBK Siegfried Böhnisch Manifold 3000 (from 1998) | (The distributor retaining bars may sit very tightly (<5mm) on the valve inserts. In
  this case we recommend VA 80H).
• Schlösser 4700 | 4705 (Actuator required from 5mm stroke) | 4800 Thermostatic valve (Actuator required from 5mm stroke).
• Schütz Comfort 2.
• Siemens VD115CLC | VD120CLC | VD125CLC | VMP47.10-1 | VMP47.15-2.5 | VMP469.15-2.5 | VPD110A-90 | VPD115A-90 | VPD115B-200 | VPE110A-145 | VPE115A-145 | VPI46.15L0.2 | VPI46.15L0.6 | VVI46.15 | VVI46.20 | VVP47.10-1 | VVP47.15-2.5 | VXI46.15 | VXI46.20 | VXP47.10-1 | VXP47.15-2.5.
• Simplex VL/Euro.
• Spartan V245 (Actuator required from 5mm stroke).
• Strasshofer VA-FBIF 2.
• Systemtechnik
• Erzgebirge VE130T-05
• Taconova TACOSYS PRO
• te-sa 220TTT-06-04S
• Therminon
• thermodämm protec AFC 1
• Thermoval Brass distributor
• TKM Stainless steel distributor
• Tobler metalplast Inox-distributor SC | metalplast Inox- distributor with DFM | Stramax | Stramax 220TT2-06-06S (Actuator required from 5mm stroke) | Stramax 220TT2-07-06S (Actuator required from 5mm stroke) | Stramax 220TTT-06-04S.
• Tour & Andersson TBV-C NF15 (Actuator required from 5mm stroke) | TBV-C NF20 (Actuator required from 5mm stroke).
• TTO Intera 69.
  Thermotechnik
  Kroatien
• Unicor 584020.
• Uponor Vario B (Actuator required from 5mm stroke) | Vario S Verteiler DFC.
• Viessmann Manifold 4 (Actuator required from 5mm stroke).
• VIR 9520 DN 15 (Actuator required from 6.5mm stroke) | 9700 DN 15 9705 DN 20 (Actuator required from 6.5mm stroke) | 9707 DN 25 (Actuator required from 6.5mm stroke).
• Vogel & Noot (Actuator required from 5mm stroke).
• Watts Manifold-T Manifold 2013AF VA05 (from 2013).
• Wieland Brass distributor.
• Wittigsthal FT 2 TV D.
• Zewotherm Manifold-I 4.
