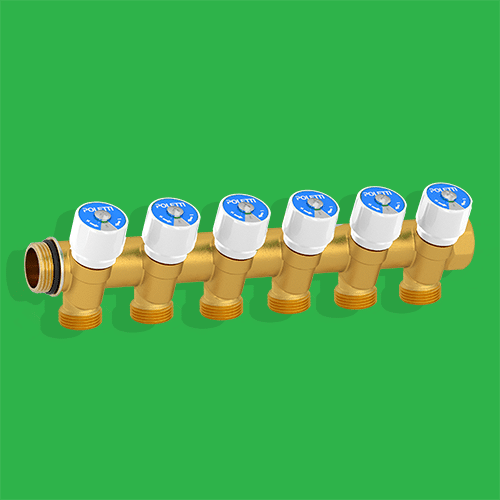

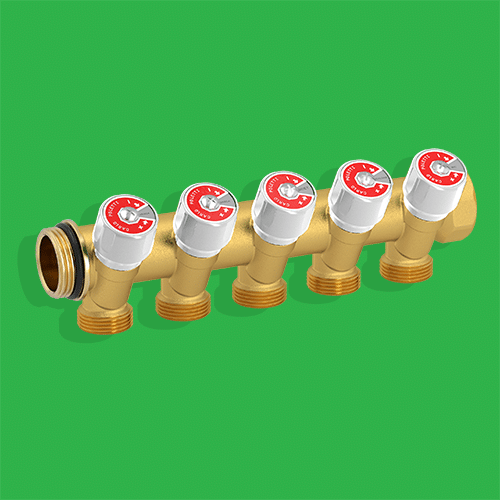

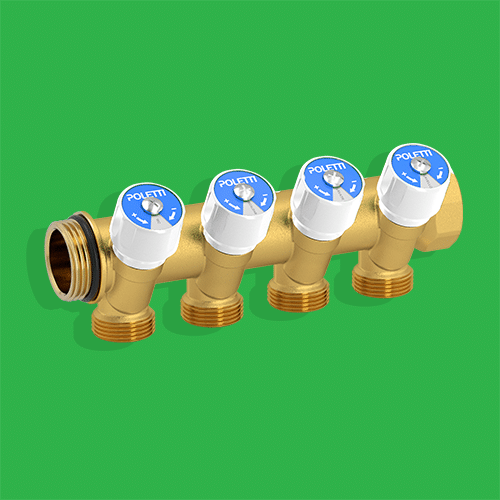

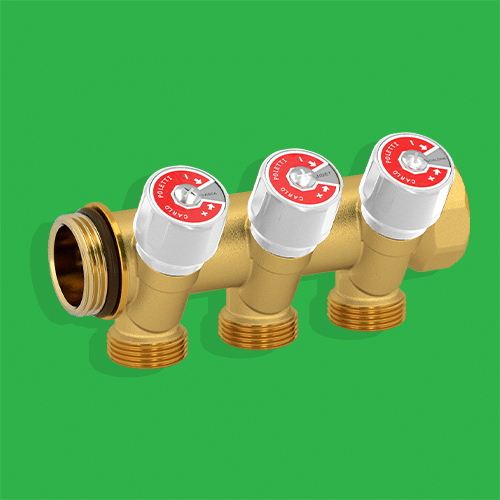

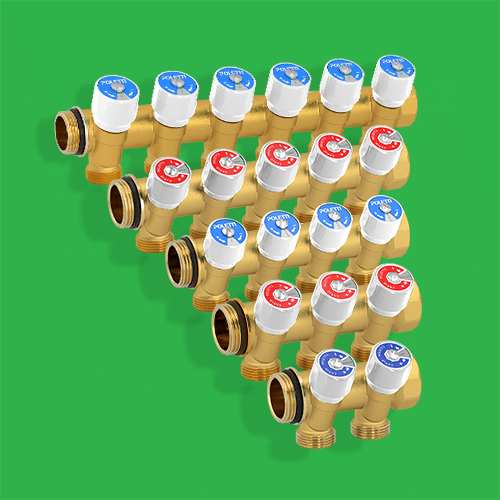

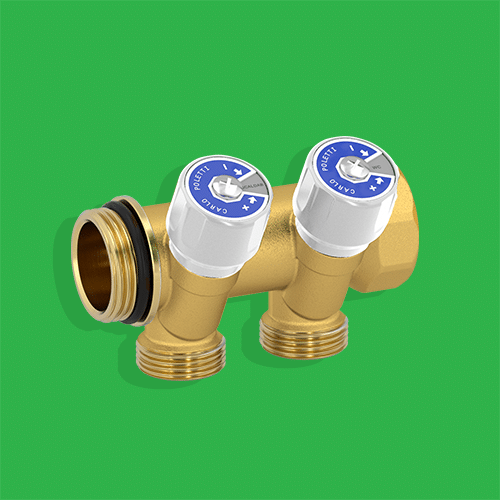

Sanitary Plumbing Distribution Manifolds with Service Isolation Valves

Advantages of using Plumbing Manifolds with Isolation Valves                                                       Approved

This versatile manifold is WRAS Approved and for use with potable (drinking) water and designed to efficiently supply either hot or cold water throughout your home, significantly enhancing the management of your domestic water system. By implementing a hot and cold manifold system, you can drastically reduce the number of joints in your plumbing, minimising potential leak points and reducing installation time.

Furthermore, this manifold system allows for the use of reduced pipe sizes at specific outlets, which can lead to savings in both material and installation costs — such as utilizing a 10mm pipe for a WC feed and a 15mm pipe for a shower feed.

Each circuit has an isolation valve, this will enable a given circuit/port to be isolated in the event of an emergency such as a leaking appliance.

Specifications and Features

• • The ¾” manifold has male and female at either end which allows the facility to extend if necessary
  • 40mm spacing between each 3/4″ BSP thread outlet connection for the use of Eurokonus / Eurocone connection for ease of installation.
  • Each handle is equipped with a double sided hot / cold disc indicator.
  • 3/4″ Eurocone outlets enable a choice of pipe diameters to the appliance/application.

Technical Data

• 1x 3/4″ MBSP Inlet
• 1x 3/4″ FBSP Inlet
• Each port has a 3/4″ MBSP Outlets spaced at 40mm.

Note: Pipe connectors, plugs, caps and brackets are purchased separately.
