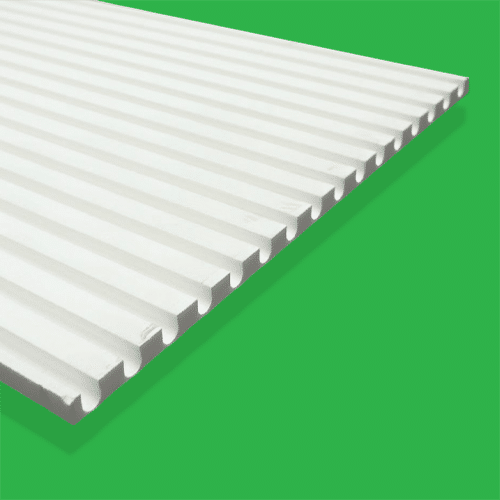

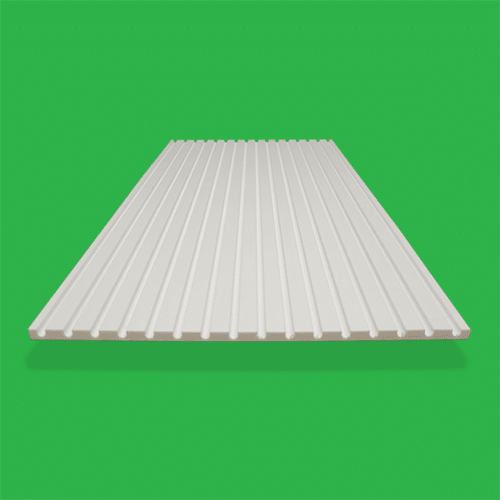

Underfloor Heating Highway Transition Panel – 16 Channel XPS Board 1200 x 600 x 20mm

Introducing the Komfort GHT 20mm XPS Highway Transition Overlay Panel — the perfect match for XPS overlay systems, providing excellent insulation and supporting the flow and return pipes back to the manifold.

TECHNICAL DATA:

• Total Dimensions:  L1200 x W600 x H20mm
• Compression Strength: XPS 400kPa
• Pipe Centres: 37.5mm
• Suitable Pipe Size:  16mm
• Thermal conductivity: 0.034W/mK
• USP: Omega grooves for easy installation
• Suitable Floor Coverings: If primed with a suitable primer, tiles can be laid directly, or a 10mm levelling compound can be used for other floor coverings.

How many boards do you need? Calculation Example: 20m2 divide by 0.72 = 28 Panels.

Key Features:

• • Material: High-density extruded polystyrene with reinforced cement coating.
  • Strength: Excellent impact and compressive strength.
  • Cutting: Can be easily cut using conventional tools.
