Water Underfloor Radiator Extension Kit 15m² – Screed Clip Rail Track System P1075R-RAD

Pack Contents

• • 1 x RTL – Temperature Control Box
  • 1 x 16mm x 100m Underfloor Heating Pipe
  • 23 x Self Adhesive Clip Rail Track (1m lengths)
  • 1 x 66mm Manual Holding Clips Qty 200
  • 1 x 25m Perimeter Edging Strip 100mm x 8mm
  • Pipe Bend Supports
  • 16mm Multi/Plastic Eurocone Pipe Connectors
  • 15mm Copper Eurocone Pipe Connectors

Designed to operate directly from an existing radiator or towel rail circuit, the system uses an integrated RTL (Return Temperature Limiter) / TCB (Thermostatic Control Box) to regulate both the air temperature and the return water temperature. This eliminates the need for a separate underfloor heating pump or manifold, significantly reducing installation complexity and overall cost.

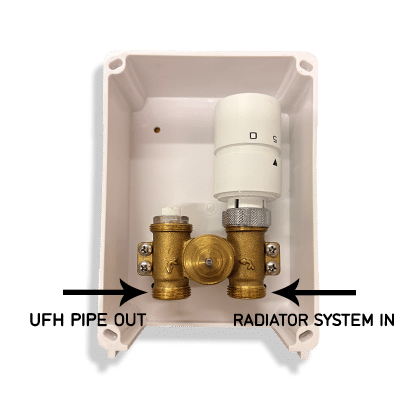

The installation process is straightforward and installer-friendly. The radiator or towel rail is connected to inlet side of the TCB unit, while the supplied 16mm underfloor heating pipe is connected to the other. The pipe is then laid across the floor area within the room, forming the heating circuit, before returning back to the TCB unit and completing the loop into the existing system.

This compact and efficient solution is ideal for retrofit applications such as bathrooms, kitchens, or small living areas, where extending comfort with underfloor heating is desired without major disruption or expense.
