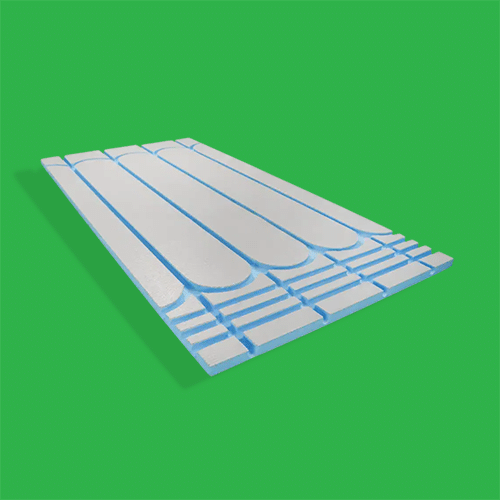

PALLET DEAL – Underfloor Heating Overlay Boards – Cement Coated XPS Panel 1200 x 600 x 20mm

This Overlay board is a high-compressive strength 200 kPa XPS insulation board specifically engineered for low-profile underfloor heating systems. It features durable cement coatings on both faces, making it ideal for direct tiling or application of floor leveller. Once levelled or tiled, it supports all common floor coverings.

The board measures 1200mm x 600mm x 20mm and comes pre-grooved at 150mm pipe spacing. These grooves are precision-cut to accommodate 16mm underfloor heating pipes, offering an efficient layout with quick, accurate installation and optimal heat output.

• Pre-grooved for pipework – Provides ready-made pipe securing and spacing with 150mm centres for fast, accurate installation.
• High compressive strength – Constructed from XPS with 200 kPa rating, ideal for tiled floors and heavy-use areas.
• Dual-purpose surface – Cement-coated faces allow for direct tiling or levelling, supporting a wide range of floor finishes.
• Panel dimensions – Each board measures 1200mm x 600mm x 20mm, suitable for 16mm underfloor heating pipes.
• Efficient heat output – Delivers up to 76W/m² when used with 16mm pipe, ensuring consistent and responsive heating performance.

This board offers a premium all-in-one solution for solid, low-profile installations, making it ideal for renovation or new build projects where efficiency and durability are key.
